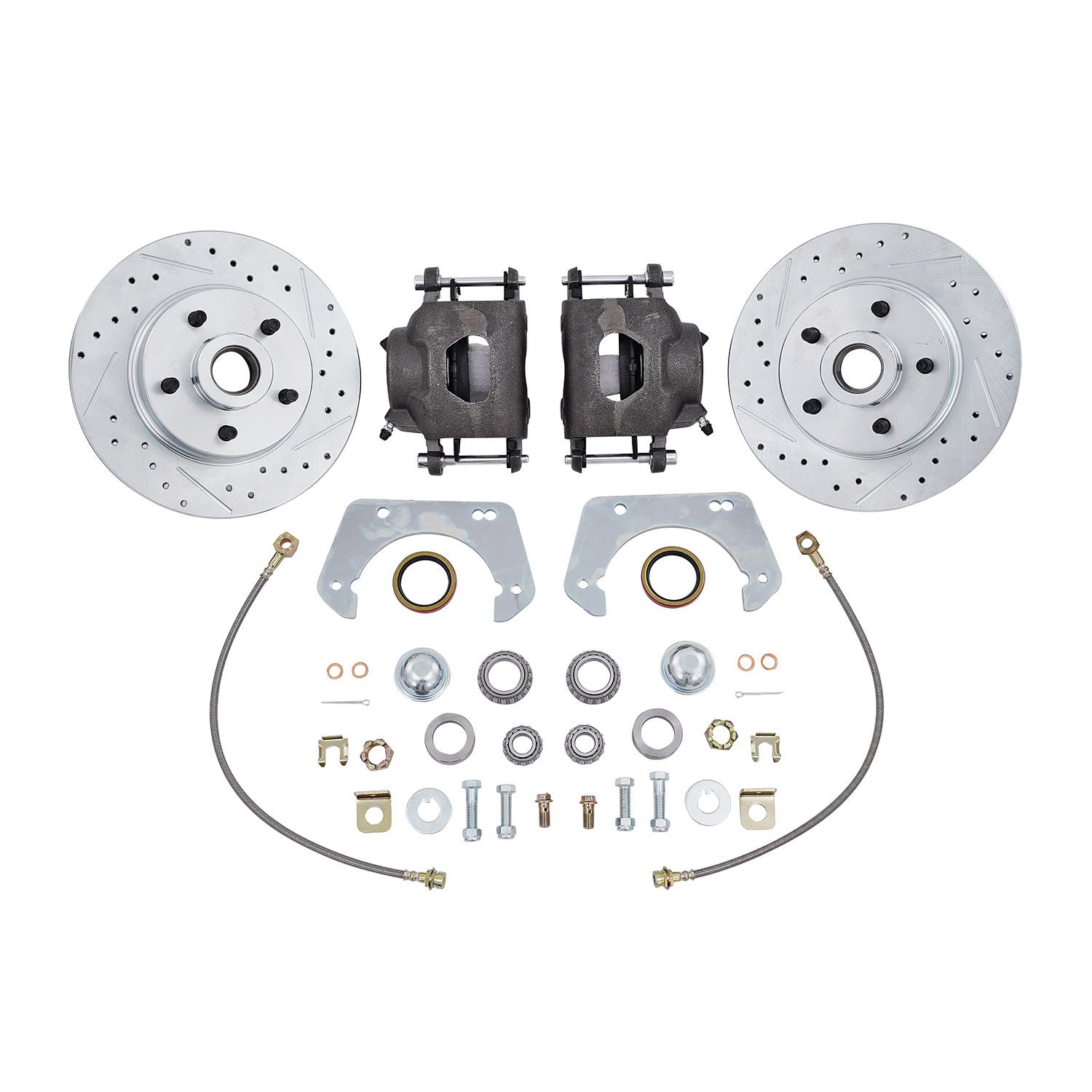

Front Disc Brake Deluxe Kit

Description

Rotor Diameter: 11 Inch
Bolt Pattern: 5 on 4.75″
Rotor Thickness: 1″
Caliper Pistons: One
Minimum Recommended Wheel Diameter: 15 Inch
Stud Length: 0.94″, Stud Diameter: 0.44″
Thread Pitch: 7/16″-20
Center line of Holes: 7.06″
Front Suspension Type: Straight Axle
Application Type: Modified 49-54 Chevy car spindle
Works on all 1949-1954 GM car spindles that have been machined per the included instructions
For straight axle hot rod builds only, not for use on 1949-1954 GM car use
Single 2-13/16-inch piston GM-style “Midsize”calipers use commonly available replacement pads
11-inch vented rotors create superior stopping power to drums, especially for heavier cars
Not for use with 1949-1954 GM truck spindles
Disc brake style wheels are required for proper caliper clearance when upgrading from drum brakes
1 Year Warranty
