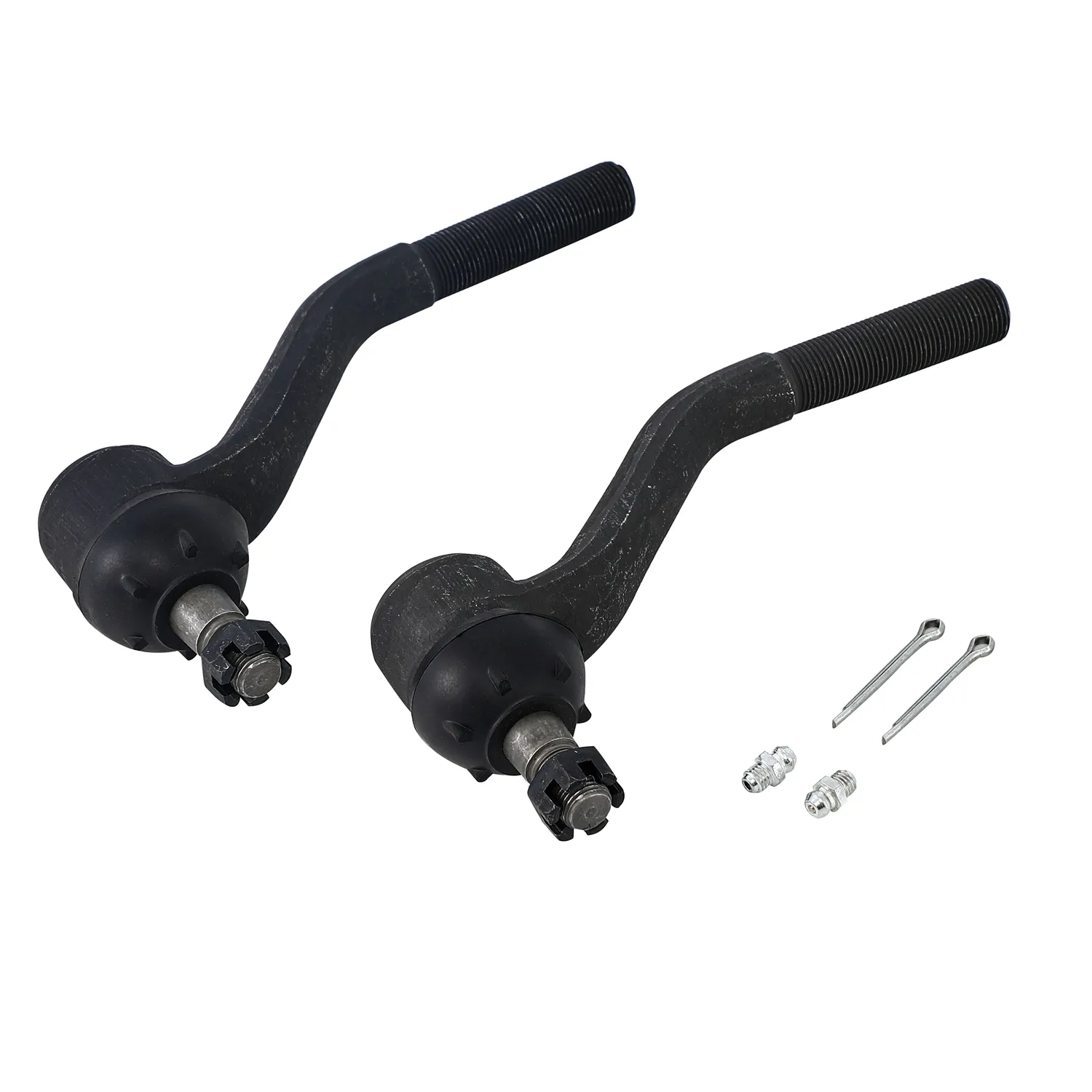

Steering Tir Rod End

Description

As you know when running a dropped axle on your Ford truck, the tie rod sleeve can hit the springs. The 1-1/2″ drop moves the tie
rod out of the way far enough to clear the springs.
* 7 Degree Taper
* 11/16″-18 Male RH/LH threads
* 1-1/2″ of drop
* 8″length end to end
* 2-1/2″ of 11/16″-18 thread
* When used w/ tube # -42.5 (tube length of 39.5″) produces a 50-1/2″ eye to eye assembly with 49-1/4″ length minimum and 52-1/4″
length maximum. (Eye to eye length – 11″ = tube length needed)
