How to Bend 3/16 Brake Line: Complete Guide to Brake Tubing Bending
Bending brake lines is a fundamental skill for anyone working on automotive brake systems. Whether you’re replacing damaged sections, installing new brake lines during a restoration, or routing lines for an aftermarket brake upgrade, knowing how to bend 3/16 brake line correctly ensures proper brake system function and safety. The 3/16 inch brake line is one of the most common sizes used in automotive brake systems, appearing in everything from classic muscle cars to modern vehicles.
This guide provides complete coverage of 3/16 brake line bending, from understanding the tubing specifications to executing clean, precise bends that fit your vehicle perfectly. Proper brake line bending isn’t just about aesthetics—kinked, collapsed, or poorly routed brake lines compromise brake system integrity and create safety hazards.
Understanding 3/16 Brake Line
Before bending anything, understanding brake line specifications ensures you work with the correct materials.

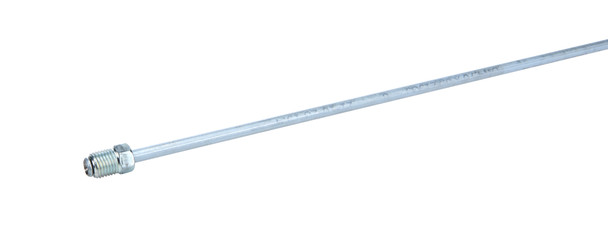

What Is 3/16 Brake Line?
The 3/16 brake line refers to 3/16 inch outside diameter tubing, which is actually quite small in the world of brake lines. This size is commonly found in older American vehicles and many imports, though larger 1/4 inch and 5/16 inch lines are also prevalent depending on the application.
Brake line tubing is typically seamless double-flare steel tubing designed specifically for brake system use. The steel is usually low-carbon steel that resists corrosion and handles the high pressures brake systems generate. Some specialty brake lines use stainless steel for enhanced corrosion resistance, particularly in areas where road salt and moisture are concerns.
The “3/16” designation refers to the outside diameter. The wall thickness is typically around 0.028 inches for standard brake line tubing, giving an inside diameter of approximately 0.134 inches. This creates a tube strong enough to contain brake fluid at pressures exceeding 1,000 PSI while remaining flexible enough to route through vehicle chassis.
Why Proper Bending Matters
Improperly bent brake lines create several problems:
Kinking: Sharp bends or improper technique causes the tube to collapse at the bend point. Kinks restrict brake fluid flow, causing poor braking performance, uneven brake application, or complete brake failure. Even minor kinks significantly reduce flow and pressure.
Work Hardening: Repeated bending or aggressive bending technique hardens the steel, making it brittle and prone to cracking over time. Cracked brake lines leak brake fluid and fail catastrophically.
Poor Fit: Inaccurately bent lines don’t route properly, creating stress on fittings, interfering with other components, or requiring additional bends that weaken the line.
Aesthetic Issues: While function matters most, poorly bent lines look unprofessional and suggest carelessness in the work.
When You Need to Bend Brake Lines
Several situations require brake line bending:
Replacement Work: Damaged sections need replacement with correctly bent new lines.
Restoration Projects: Classic car restorations require fabricating brake lines to match original routing.
Suspension Modifications: Lifted vehicles or suspension changes require longer or differently routed brake lines.
Brake Upgrades: Aftermarket brake systems often need custom brake line routing.
Frame-Off Restorations: Complete vehicle disassembly requires removing and replacing or replumbing brake lines.
Tools for Bending 3/16 Brake Line
The right tools make brake line bending significantly easier and produce better results.
Manual Tubing Bender
The most common tool for bending brake lines is the manual tubing bender, sometimes called a tubing cutter bender or brake line bender:
Standard Tubing Bender: This handheld tool uses a form block and roller system to bend tubing around a die. You insert the tubing, apply pressure with the handles, and the bend forms around the die. These benders work well for most applications and are affordable.
Lever-Style Tubing Bender: More substantial than standard benders, lever-style benders provide mechanical advantage for smoother bends and work better for thicker-walled tubing. Professional mechanics often prefer lever-style benders.
Mini-Benders: Smaller benders designed for tight spaces and smaller diameter tubing. Useful when working in cramped engine bays where a full-size bender won’t fit.
When selecting a bender, ensure it’s rated for 3/16 tubing. Some benders are designed for multiple sizes; others are size-specific. Using a bender meant for larger tubing on 3/16 line produces poor results.
Spring Benders
Spring benders are flexible steel springs that slip over the tubing to support it during bending:
How They Work: The spring slips over the line and sits at the bend point. As you bend the tubing, the spring prevents kinking by supporting the walls from inside.
Advantages: Spring benders are inexpensive, work in tight spaces where a regular bender won’t fit, and allow bends at any angle without tools.
Disadvantages: Spring benders require skill to use effectively. They’re best for gentle curves rather than sharp bends. They also don’t work for bends in multiple planes or complex routing.
Spring benders work best for experienced fabricators who can judge bend radius by feel. Beginners often produce inconsistent results until they develop the technique.
Hydraulic Tubing Bender
For professional work or large projects, hydraulic tubing benders provide the most consistent results:
Operation: Hydraulic pressure drives a bending die around the tubing, producing smooth, consistent bends every time. The operator sets the desired angle, and the bender achieves it automatically.
Advantages: Exceptional accuracy, smooth bends, reduced physical effort, and professional results. Essential for production work or when identical bends are needed repeatedly.
Disadvantages: Hydraulic benders are expensive, requiring significant investment for professional-grade equipment. They’re overkill for occasional brake line work.
Most hobbyists and even many professionals use manual benders successfully. Hydraulic benders are typically reserved for high-volume fabrication shops or enthusiasts doing extensive restoration work.
Supporting Tools and Equipment
Beyond the primary bender, these supporting tools help produce quality work:
Tube Cutter: Clean, square cuts are essential for proper flare fitting. A quality tubing cutter produces cleaner cuts than a hacksaw.
Deburring Tool: Removes interior burrs from cut tubing. Interior burrs restrict flow and can damage flare fittings.
Flare Tool Kit: For double-flaring new tubing ends to create fittings.
Measuring Tools: Combination squares, protractors, and flexible measuring tapes for layout work.
Center Punch and Marking Tools: For marking bend points accurately.
Sandpaper and Files: For cleaning cut edges and minor surface corrections.
Techniques for Bending 3/16 Brake Line
With the right tools and proper technique, bending 3/16 brake line becomes straightforward.
Preparing the Tubing
Before making any bends, prepare your work:
Measure Twice, Cut Once: Accurate measurement prevents wasted material. Measure the total run, including straight sections and bends, before cutting tubing.
Clean the Tubing: New brake line often has protective coating or oil. Clean the section you’ll be bending with brake cleaner or mineral spirits. This improves bending quality and removes contaminants.
Inspect for Defects: Check for dents, kinks, or surface damage before bending. Damaged tubing produces poor bends and may fail in service.
Support the Tubing: During bending, support the straight sections of tubing to prevent sagging or unwanted movement. A helper or vise helps with longer runs.
Using a Manual Tubing Bender
The manual bender produces the most consistent results for most applications:
Insert the Tubing: Place the straight section of tubing into the bender’s groove, positioning the bend point against the form block. The tubing should be fully supported up to the bend point.
Verify Alignment: Ensure the tubing sits flat in the groove without cocking or tilting. Misaligned tubing produces twisted bends.
Apply Steady Pressure: Squeeze the handles steadily, allowing the form block to work the bend around the tubing. Jerky or excessive force causes kinking and inconsistent bends.
Watch the Bend Angle: Most benders have degree markings showing bend progress. Stop when you reach the desired angle.
Remove and Inspect: Take the bent tubing out and check the bend. Look for any flattening, kinking, or distortion. A properly bent section maintains round cross-section throughout the bend.
Spring Bending Technique
For situations where a regular bender won’t fit, spring bending offers an alternative:
Select the Correct Spring: The spring must fit snugly over the tubing without being too tight. Too loose provides no support; too tight damages the tubing when inserting or removing.
Position the Spring: Slide the spring over the tubing and position it at the bend point. The spring should extend slightly past where the bend will occur.
Support the Ends: Have someone hold the straight sections of tubing steady, or use a vise with protective jaws to hold the work.
Bend Gradually: Apply steady pressure to form the bend, keeping the bend radius consistent throughout. The spring prevents kinking by supporting the tube walls.
Remove the Spring: After bending, twist and slide the spring off the tubing. Sometimes rotating the spring makes removal easier.
Spring bending requires practice to judge bend radius consistently. Start with gentle curves and develop your technique before attempting tighter bends.
Bending in Multiple Planes
Complex brake line routing often requires bends in different directions:
Mark Your Work: Clearly mark the tubing showing where each bend will occur and the direction it will go.
Work in Sequence: Make each bend in order rather than trying to bend randomly. Complete all bends in one direction before rotating the tubing for bends in another plane.
Account for Springback: Steel tubing springs back slightly when bent. Overbend slightly to account for this—typically 2-5 degrees depending on the steel hardness and bend radius.
Check Progress Frequently: Test-fit the line periodically to verify the bends align with your routing needs. It’s easier to adjust a bend while you can still move the tubing freely.
Use Bending Jigs: For complex routing, create a bending jig from wood or cardboard templates showing exact bend positions and angles. This guides your work and reduces trial and error.
Creating Compound Bends
Compound bends—bends that occur very close together or at unusual angles—present special challenges:
Direction Changes: When routing around obstacles, you may need bends in opposite directions immediately adjacent to each other. These “Z-bends” require careful measurement and often benefit from test pieces.
Tight Radius: Extremely tight bends risk kinking. When tight bends are unavoidable, use the smallest radius bender available and bend gradually.
Closely Spaced Bends: Bends very close together require careful sequencing. Sometimes it’s easier to make one bend, cut the tubing, bend the next section, then join them with fittings rather than attempting continuous bends.
Common Mistakes to Avoid
Learning from common mistakes prevents frustration and wasted materials.
Kinking the Tubing
Kinking is the most common beginner mistake:
Causes: Excessive force, insufficient support, wrong tool, or bending beyond the tubing’s minimum radius.
Prevention: Use proper technique, appropriate tools, and adequate support. If the tubing resists bending, stop and assess—forcing it causes kinking.
Detection: Look for visible flattening, ripples, or wrinkles at the bend point. Run your finger along the inside of the bend—if you feel a ridge, the tubing is kinked.
Remedy: Kinked tubing must be replaced. Kinks cannot be repaired—cut out the kinked section and remake the bend or replace the entire line.
Overbending
Bending beyond the desired angle wastes material and creates stress:
Prevention: Watch the angle markings on your bender. When uncertain, stop short of the target angle and check fit before committing.
Correction: If overbent, you can sometimes open the bend slightly by straightening a bit, but this stresses the tubing. For precision work, cut the tubing and start the bend fresh.
Using Wrong-Sized Equipment
Tools designed for larger tubing produce poor results on 3/16 line:
Symptoms: Poor bend quality, inconsistent radius, difficulty controlling the bend.
Prevention: Verify your bender is rated for 3/16 tubing. Multi-size benders often have changeable dies—ensure you have the correct die installed.
Ignoring Springback
Steel tubing springs back slightly after bending:
Result: The final bend angle is less than intended, requiring adjustment or remaking the bend.
Prevention: Overbend slightly to compensate. Experience teaches how much springback to expect from your specific tubing.
Poor Measurement
Measurement errors compound through the entire fabrication process:
Result: Tubing too short wastes the piece; tubing too long requires additional bends or adjustment.
Prevention: Measure multiple times, account for all bends in your calculations, and test-fit before committing to final cuts.
Professional Tips for Precision Bending
These advanced techniques improve your brake line fabrication:
Template Bending
For duplicate work or complex routing, create a template:
Procedure: Use stiff wire or thin tubing to create a full-size template showing exact routing. Mark bend points on the template, then replicate them on your actual brake line.
Advantages: Eliminates guesswork, produces identical bends for multiple lines, and allows refinement before cutting expensive tubing.
Test Pieces
Before committing to final tubing, practice with inexpensive copper or steel tubing:
Procedure: Use the same bending technique on cheap test material to verify your angles and fit before working with brake line.
Advantages: Identifies problems before wasting brake line, builds confidence in technique, and allows experimentation.
Incremental Bending
Instead of trying to make perfect bends in one motion:
Procedure: Make the bend in stages—slight bend, check angle, adjust, repeat until reaching the target.
Advantages: Produces more accurate angles, reduces overbending, and gives more control over the process.
Leave Extra Length
When uncertain about exact length requirements:
Procedure: Cut tubing longer than you think necessary. You can always cut more off, but you can’t add length back.
Advantages: Insurance against measurement errors, allows for adjustment, and reduces waste from cutting short.
Working with Flares
Remember that flare fittings add length:
Procedure: Account for the length the flare will add when measuring total tubing length. A double-flared end adds approximately the flare length to your total.
Prevention: Measure from flare point to flare point, not fitting end to fitting end.
Working with Different Materials
3/16 brake line comes in various materials, each with different bending characteristics:
Steel Brake Line
Standard steel brake line is the most common and easiest to bend:
Characteristics: Moderate springback, consistent bending behavior, work-hardens if overbent.
Technique: Standard bending technique works well. Moderate pressure produces good results.
Stainless Steel Brake Line
Stainless brake line resists corrosion better but requires different technique:
Characteristics: Higher springback than standard steel, requires more force, doesn’t work-harden as readily.
Technique: Increase bend radius slightly to account for springback. Apply more pressure than with standard steel. Some mechanics find stainless requires two or three light bends rather than one firm bend.
Copper-Nickel Brake Line
Some newer vehicles and racing applications use copper-nickel tubing:
Characteristics: Excellent corrosion resistance, more flexible than steel, less springback.
Technique: Requires gentler technique—copper-nickel is easier to kink than steel. Use spring support more liberally and bend gradually.
Copper Tubing
Sometimes used for temporary repairs or custom applications:
Characteristics: Very easy to bend, severe springback, prone to kinking.
Technique: Support thoroughly with springs. Bend gradually and check frequently. Not recommended for permanent brake lines.
Quality Control and Inspection
Every bent brake line requires inspection before installation:
Visual Inspection
Examine the bent section carefully:
Roundness: The cross-section should remain round throughout the bend. Any flattening or distortion indicates a problem.
Surface Condition: Look for cracks, splits, or surface damage from the bender.
Kinks: Run your fingers along the inside of the bend feeling for ridges or irregularities.
Pressure Testing
Before installing, pressure test the line:
Procedure: Cap one end, connect the other to a brake bleeder or pressure source, submerge in water, and apply pressure.
What to Look For: Any bubbles indicate a leak. Kinks or weak points may bulge or show distress under pressure.
Flow Verification
Ensure the bent line doesn’t restrict flow:
Procedure: Blow compressed air through the line and feel for any restriction. Alternatively, run brake fluid through the line and verify free flow.
When to Buy Pre-Bent Lines
Sometimes factory or aftermarket pre-bent lines are the better choice:
Advantages of Pre-Bent Lines
Precision: Machine-bent lines are highly accurate, produced with CNC equipment.
Quality Materials: Professional lines use quality tubing with proper wall thickness.
Correct Fittings: Pre-bent lines often include correct fittings, saving shopping time.
Application Specific: Lines are designed for specific vehicles, ensuring fitment.
When to Bend Your Own
Custom Applications: Pre-bent lines don’t exist for custom builds or modified vehicles.
Unavailable Parts: Some older or obscure vehicles lack pre-bent options.
Cost Savings: Bending your own is cheaper than buying specialty pre-bent lines.
Learning Opportunity: Bending your own lines develops useful fabrication skills.
Summary: Key Points to Remember
- Use proper tools—a quality 3/16 tubing bender produces far better results than improvised methods.
- Prevent kinking—support the tubing adequately, bend gradually, and stop if you feel excessive resistance.
- Account for springback—overbend slightly to achieve your target angle after the steel rebounds.
- Measure carefully—accurate measurement before cutting prevents wasted material and frustration.
- Inspect every bend—check for kinks, distortion, or damage before installation.
- Practice on test pieces—develop your technique with cheap tubing before working with brake line.
- Consider pre-bent options—for standard applications, factory lines may be the better choice.
Bending 3/16 brake line is a learnable skill that serves you in countless automotive projects. With proper tools, careful technique, and attention to detail, you can produce professional-quality brake lines that fit perfectly and perform reliably. Take your time, measure carefully, and never accept a kinked or questionable bend—your safety and the safety of your passengers depends on brake system integrity.
