Rear Disc Brake Conversion Kit

Description

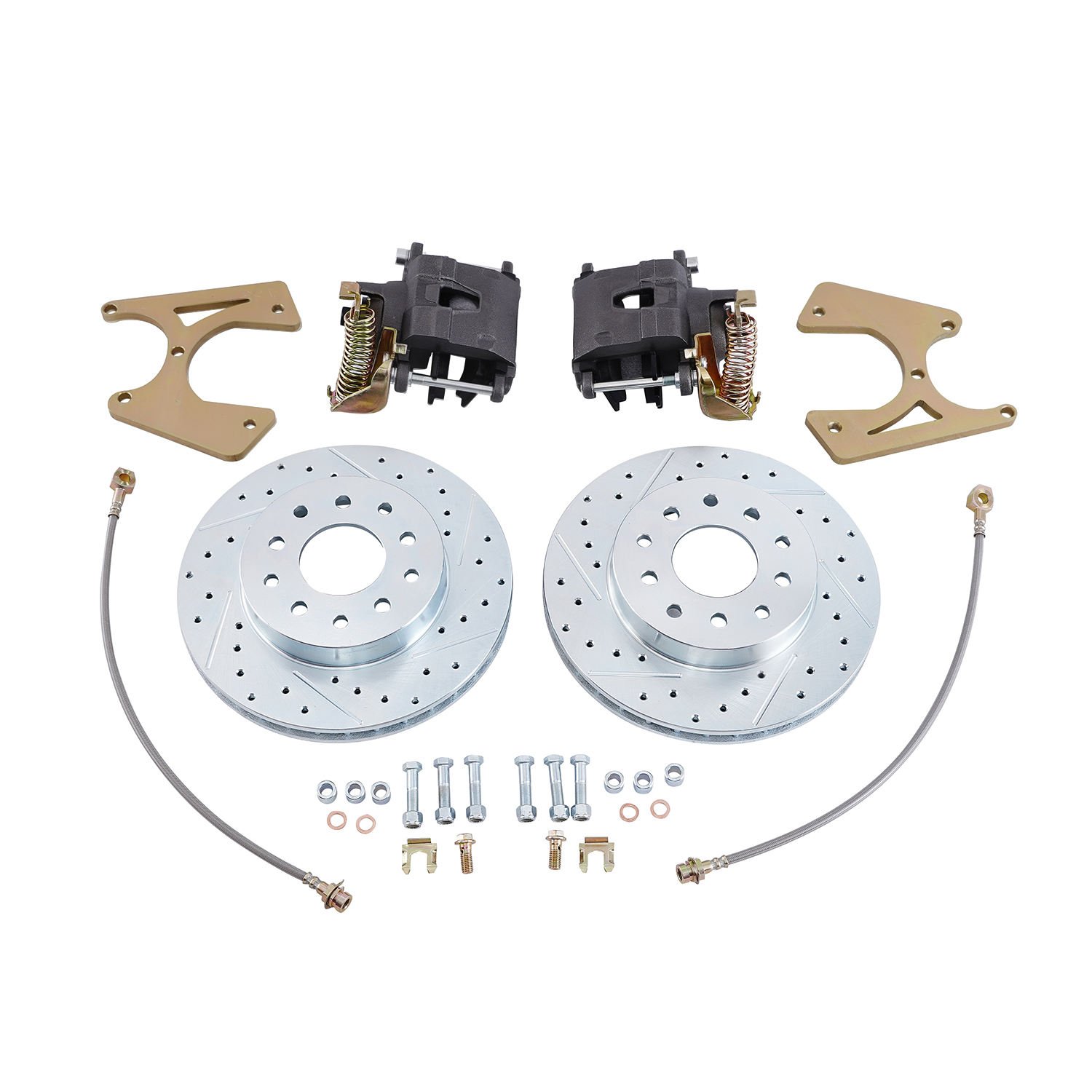

Complete Rear Disc Brake Conversion Kit Features:
* Left & Right Parking Brake Caliper (With Emergency Brake Style)

* 11-1/4″ Rotor

* Brake Line Retaining Tab Pair

* Pair of Caliper Brackets

* Bolt Pattern : 5 on 4.5″|4.75″

* Rotor Diameter : 11.25 Inch

* Rotor Thickness : 1.00″

* Rotor Material Type : Cast Iron

Application :
This kit will fit 10 & 12 Bolt (non-staggered shock) rear ends from:
1964-77 Buick Skylark
1964-73 Chevy Chevelle.
1964-79 Chevy Nova/chevy ll
1964-77 Chevy El Camino
1967 camaro
1970-77 Chevy Monte Carlo
1964-71 0ldsmobile 442.
1964-77 0ldsmobile Cutlass
1964-73 Pontiac GTo.
1964-77 Pontiac LeMans
1964-70 Pontiac Tempest

The housing flange must have:
3-1/8″ center-to-center distance for the top two bolt holes
2-11/16″ center-to-center distance for the bottom two bolt holes
2-7/16″ distance from the center of the top bolt to the center of the bottom bolt
Note: This disc brake kit does NOT fit all 10 & 12 bolt rear axles. It does NOT fit full size car (Biscayne, Bel Air, Impala) or pickup rear axles.
